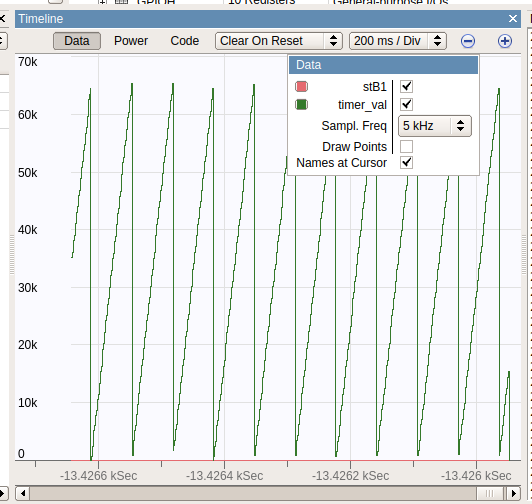

    Hello, is there a possibility to split two signals (basically which are of different singal levels) in the data graph to their indivdual y-axes for better visulization?
    Thank you.
    Images

    • twosignals.png

      35.16 kB, 532×504, viewed 438 times

  • Hi Skam,
    nope, that's not possible. However, you might try the scaling feature: Right click into the legend, onto the respective graph, and chose a suitable scaling factor.
    Maybe that's close to what you intended?
    Best regards
    -- AlexD
    Please read the forum rules before posting.

    Keep in mind, this is *not* a support forum.
    Our engineers will try to answer your questions between their projects if possible but this can be delayed by longer periods of time.
    Should you be entitled to support you can contact us via our support system: segger.com/ticket/
    Or you can contact us via e-mail.

  • Hi Alex,

    thanks for your response. The proposed solution works like a charm. Please find the attached image.

    Not very important proposal. In the second attached image we could see that there is only upscale multiplication factor on the signal but no downscaling.
    It would be quite helpul to have this, to sclae large signals.

    Thanks for your support.
    Kimd regards
    Images

    • scaling_signals.png

      68.61 kB, 1,253×463, viewed 406 times

    • upscaling.png

      58.81 kB, 875×451, viewed 345 times

  • Hi skam,

    thank you for your suggestion to add support for scaling in the range less than 1. I'll bring that up in our next internal meeting. I cannot tell if or when this will be implemented, though.

    Best regards
    -- AlexD
